Sketchup: Cosmic Encounters

Cosmic Encounter Sleeved Card HolderI have had some time to start review, revising and transcribing my designs from my clipboard of graph paper to Google Sketchup I am a little worried because I only have the base game, no expansions. I looked up the card pieces so that I could plan out how much empty space to leave for each card type (squeezing them in with sleeves, because you kooky boardgamers love sleeving your cards!) I actually had to use a mixture of boardgamegeek and the PDF copies of the rules that come with every expansion, as they give a perfect breakdown of all of the content included in each set.
Cosmic Encounter Sleeved Flare Card Holder
Cosmic Encounter Alien Card holderIn order to fit all the cards with sleeves from the base game + six expansions on my printer, I had to cut the biggest card section (for flare cards) into their own print. I can still fit them onto the printer side by side, just not length wise. I have one of the smaller printers, so hopefully it works for the folks on thingiverse.

I also design a large holder for the alien cards, based on ZekTheMad's large card holder on the Eldritch Horror project I printed earlier in the month.. I did all the measurements myself, just based on his.. I liked the look of the rounded slots.

With the expansions, two should be just perfect. they will fit in the box with some space to place the randomly sized cardboard pieces on top

Cosmic Encounter Player PiecesI decided that the best way to store all 8 sets of player pieces would be to make a lipped box and store them on their side.  I need to print one of them and test it with the player pieces, since the inside is just enough to fit the round planets. The rest of the box should be good though, more than enough space to fit all the ships as well as those planets, if the planets fit.

In the remaining space, in the corner at the end of the cards, I designed a generic token tray with a lid. It should fit 2 trays on top of each other.

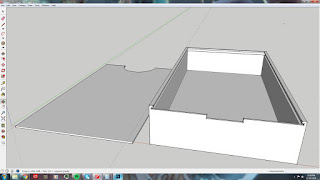

Cosmic Encounter Token TraysNow, this said - I have no flipping idea if this will be enough storage space for all of the tokens and extra cardboard cutouts that came with the expansions. I may test my prints on Nameless Roommate #1's copy, as he has all but one expansion. I feel that this will give me a good enough feeling for what will fit.

My next step is to print out the files (I am still just waiting on the some plastic, my shipment from push plastics is est. delivery date of 12-6 (omg, wtf, amazon has ruined me) So when a CamelCamelCamel alert came up for Dixit Quest, I added some cheap PLA to the order. It should be here today, so I just need to export my sketchup files to the right format(.stl), and prepare my bed for printing. Hopefully I will have some kind of picture of a printed item to show everyone tomorrow.

Cross your fingers!
