If it Fits, I prints


Slicing Up BeforeA quick write up of my experience with printing the Eldritch Horror insert. Two of the larger pieces didn't fit. (sad face)  I covered this a bit in the last post, but I thought I would include more images.

Here I have a screenshot of my Cura(splicing software that sends prints to printer) and one of the two pieces that was too big for my printer. The blue checked area is representative of the area my printer can handle. When an item will not fit on the printer, it turns gray. As you can see in the above image, this image overhangs, but only on one axis, which is pretty easy to fix.

I imported the .STL file into Google Sketchup and cut the last compartment off the storage unit. As you can see below, the newly sliced piece fits both pieces on the bed, so I was still able to print it all at once.

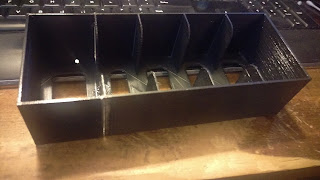

After I printed the two smaller pieces, I used tacky glue to connect them!  It's not 100% aesthetically pleasing, but it works, and the glue is actually strong enough to pick it up by either side and it will not fall apart.
